PSB CustomSound Imagine C-LCR Angled In-Ceiling Speaker (Each)

True Audiophile Front-Channel Performance—Hidden in Your Ceiling.

Short Description

Traditional in-ceiling speakers fire straight down, detaching the sound from the action on your screen. The PSB Imagine C-LCR breaks the mold. Featuring a specialized angled baffle and an integrated acoustic back-box, this high-performance speaker accurately directs pristine dialogue and explosive sound effects right to your ears. Get true Left, Center, or Right (LCR) reference theater sound with a zero-footprint design.

Retail Price: $1,499.00 USD

Sold individually. For a complete front-channel setup, order three units.

Key Features

• Innovative Angled Baffle: Seamlessly anchors movie dialogue and sound effects directly to the screen instead of overhead, creating a remarkably coherent, lifelike front soundstage.

• Integrated Sealed Back-Box: Built-in 0.36 cubic foot acoustic enclosure ensures perfectly consistent, predictable bass performance regardless of your ceiling's internal cavity space. It also blocks unwanted sound transfer to adjacent rooms.

• Imagine Series DNA: Utilizing the exact same driver materials found in PSB’s critically acclaimed freestanding Imagine monitors, ensuring perfect timbre matching for pristine high-end audio fidelity.

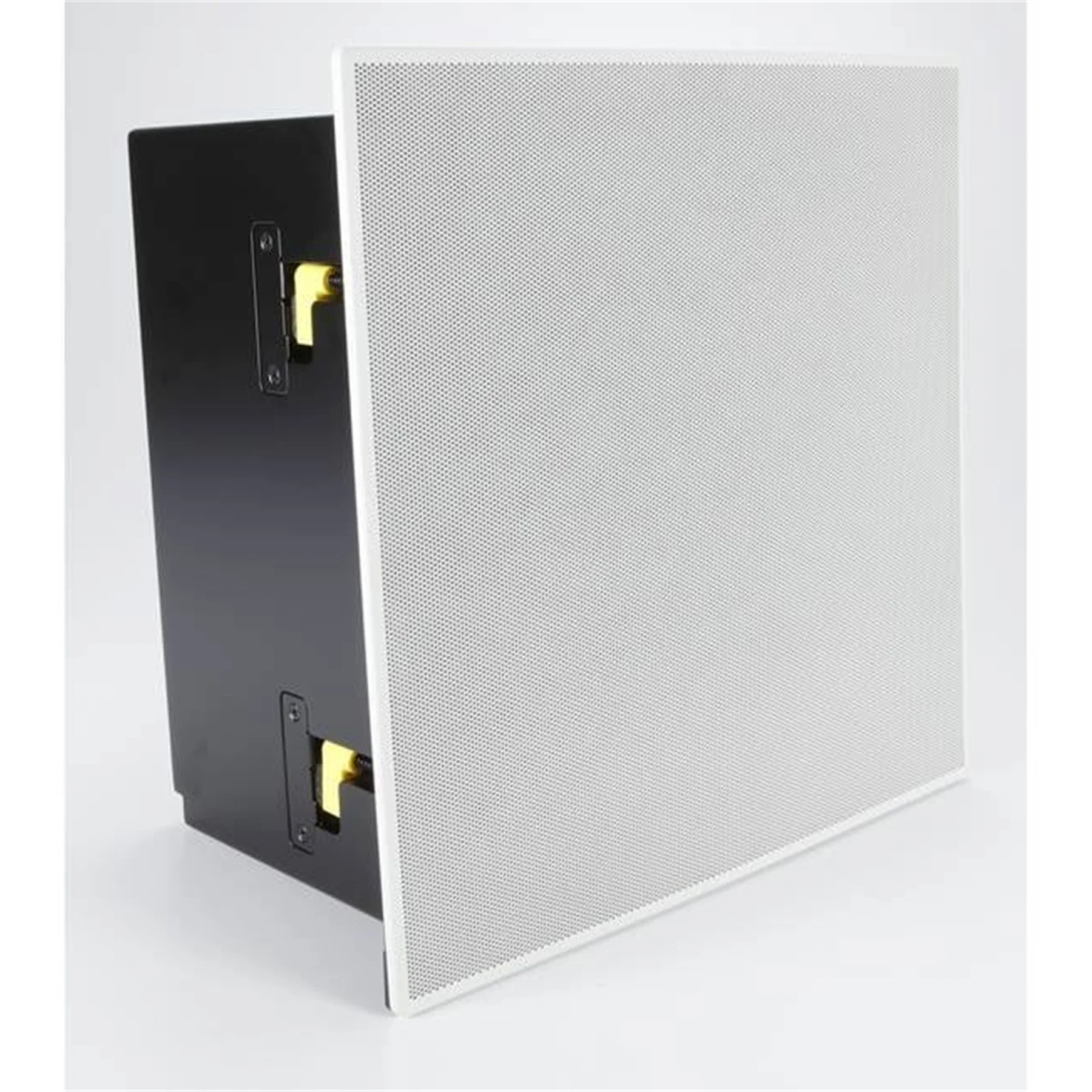

• Invisible Integration: Includes a premium, ultra-low-profile magnetic frameless grille with a fabric scrim. The grille is fully paintable to flawlessly blend with any ceiling decor.

Technical Specifications

Audio Feature	Specification
Speaker Design	2-Way, 3-Driver In-Ceiling with Integrated Back-Box
High-Frequency Tweeter	1" (25mm) Titanium Dome with Ferrofluid Cooling
Low-Frequency Woofers	Dual 5.25" (133mm) Clay/Ceramic Reinforced Polypropylene Cones
Crossover Network	1,750 Hz, LR4 (4th-Order Linkwitz-Riley)
Frequency Response	65 Hz – 23,000 Hz (±3dB on axis)
Sensitivity	88 dB (Anechoic) / 90 dB (Listening Room)
Nominal Impedance	6 Ohms (4 Ohms Minimum)
Recommended Amp Power	20 – 150 Watts
Cutout Dimensions	13.1875" x 13.1875" (335mm x 335mm)
Mounting Depth	7.75" (196mm)
Net Weight	17.6 lbs (8.8 kg) per speaker

Engineered for Serious Home Theater

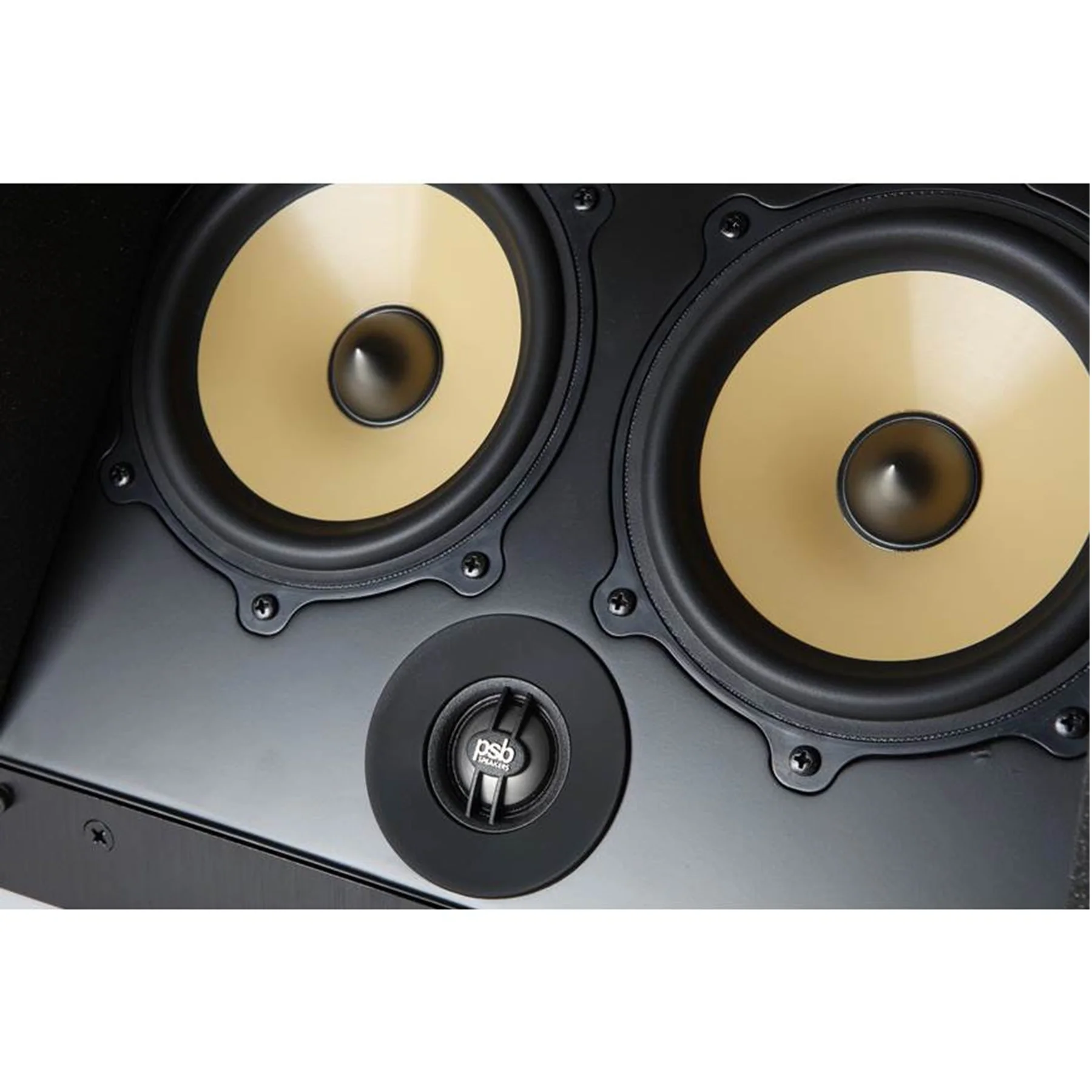

Borrowing premium driver designs from PSB’s audiophile tower speakers, the C-LCR features dual 5.25" clay/ceramic-reinforced polypropylene woofers flanking a centralized 1" titanium dome tweeter. This powerful configuration handles deep dynamic sweeps with speed and control, preventing the midrange bloat and harsh high-frequency refraction that plague cheaper architectural options.

Pro Installer Tip: Because the cabinet is 7.75" deep to maximize its internal air volume for deep bass extension, always double-check your ceiling joist depth before ordering. Installation is a breeze courtesy of the heavy-duty steel and ABS dogleg clamping system.

What's in the Box?

• (1) PSB Imagine C-LCR Angled In-Ceiling Speaker

• (1) Paintable White Frameless Magnetic Grille

• (1) Pre-Construction Cutout Template

• (1) Quick Start Installation Guide
